| ब्रांड नाम: | Lei Kan |
| मॉडल संख्या: | LKXR-KD107 |
Ⅰ. Overview

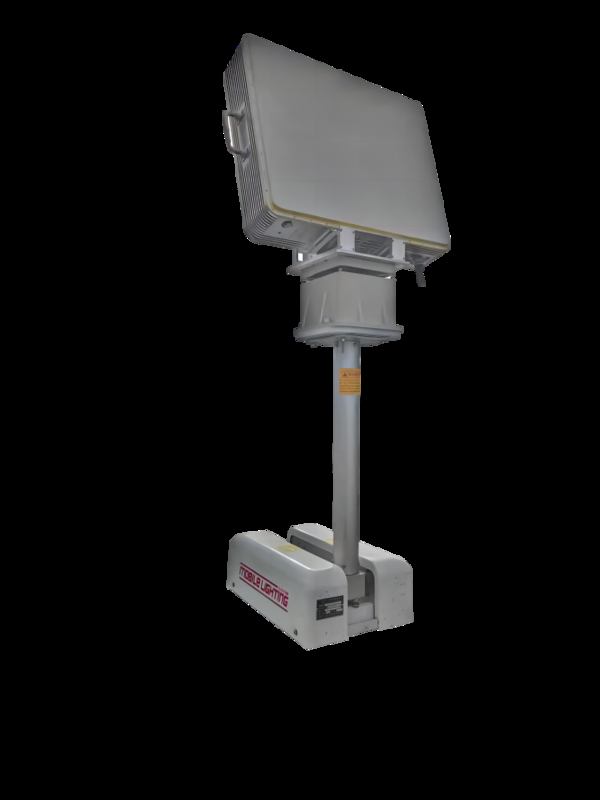

The one-dimensional AESA phased array with Ku-band and azimuth machine scanning system can realize three-dimensional airspace detection of 360° azimuth and 0°-45° pitch, and can process more than 100 batches of low-altitude targets at the same time.
Ⅱ. Highlights
1. AESA solid-state architecture
2. 5 km detection on 0.01 m² drones
3. 45° elevation scan adapts to rugged terrain
3. 27 kg single unit, rapid set-up
Ⅲ. Specifications
|
Parameter |
Value |
|
Radar type |
Elevation AESA + Azimuth mechanical |
|
Band |
Ku |
|
Coverage |
Az 360° |
|
Scan rate |
60°/s |
|
Range (Pd=0.8) |
5 km (0.01 m²) |
|
Blind range |
≤200 m |
|
Range res./acc. |
10 m / ≤4 m |
|
Az accuracy |
≤0.5° |
|
El accuracy |
≤0.5° |
|
Vel. accuracy |
≤1 m/s |
|
Radial velocity |
0.8–40 m/s |
|
Max tracks |
≥100 |
|
TX power |
160 W |
|
Size/Weight |
590×475×126 mm / 27 kg |
Ⅳ. Features
1. High reliability solid-state modules
2. Advanced clutter suppression for urban use
3. Fast elevation scan for high data rate
