Ⅰ. Product Overview

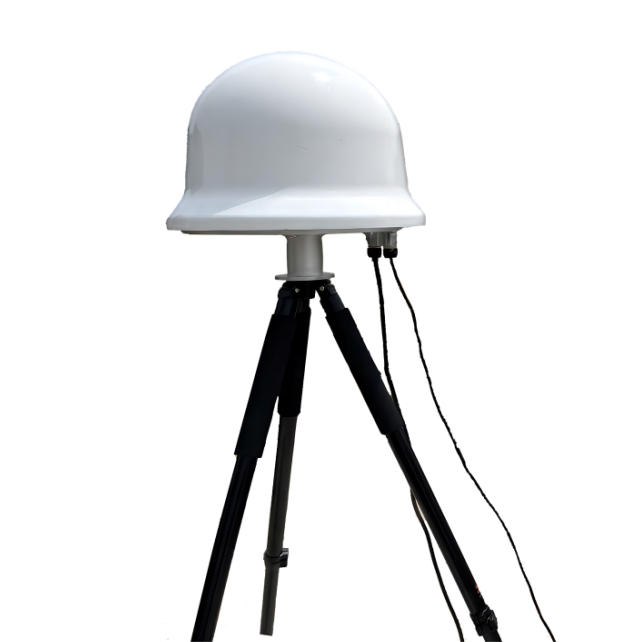

The is a stationary navigation-spoofing system designed for counter-UAV operations. It synthesizes and radiates GNSS signals that are bit-for-bit identical to authentic on-orbit satellite constellations. By position-spoofing, velocity-spoofing and time-spoofing, the system manipulates any UAV that relies on GPS/GLONASS (and optionally Galileo or BeiDou) for navigation. Typical outcomes include forced landing, expulsion, guided diversion to a predetermined location, or prevention of take-off within a protected zone.
Ⅱ. Key Features
1. Integrated GNSS receiver for real-time synchronization with on-orbit satellites.
2. Adjustable RF output; external amplifier modules can be fitted to extend engagement range.
3. Capable of forced landing, expulsion, directed diversion and no-fly enforcement.
4. Emits spoofing patterns that drive the UAV into circular, straight, constant-speed, variable-speed or curved trajectories.
Ⅲ.Technical Parameters
|
Parameter |
Value |
|
Operating Bands |
GPS-L1: 1575.42 MHz ± 1.023 MHz |
|
GLONASS-L1:1602 MHz + N × 0.5625 MHz ± 0.511 MHz (N = −7 … +6) |
|
|
Galileo-E1: 1575.42 MHz ± 12.276 |
|
|
MHzBeiDou-B1:1561.098 MHz ± 2.046 |
|
|
MHz(customizable) |
|
|
Operating Mode |
Real-time generation of GPS-L1 and GLONASS-L1 spoofing signals; optional generation of Galileo-E1 and BeiDou-B1 spoofing signals |
|
Spoofing Range |
0.5–1 km at 10 mW (EIRP)Greater range achievable by increasing transmit power |
|
Spoofing Response Time |
≤ 10 s (within effective range) |
|
Effective Spoofing Angle |
Horizontal: 360°Vertical: 0–90° |
|
Simultaneous Counter-UAV Capacity |
Unlimited |
|
RF Transmit Power |
10 mW (EIRP) base unit |
|
Continuous Operation |
≥ 24 h |
|
Dimensions |
420 mm × 370 mm |
|
Weight |
≤ 10 kg |
